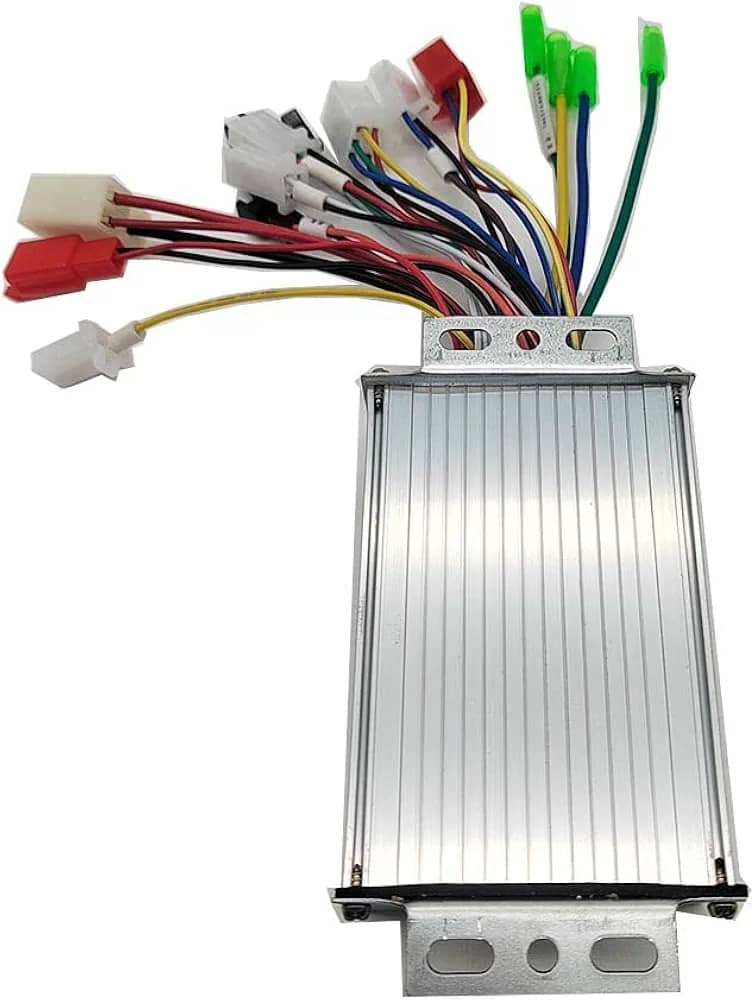

48V 350W Controller
$50.00
Rated Voltage: 36V/48V Low Voltage : 31V/42V±0.5V Rated Power: 350W Limit Current: 17A 1.pointer meter line 2. motor line 3.3-speed line 4.Anti-theft alarm line 5.self-learning line 6.hall line 7.throttle line 8.low brake 9.Anti-theft power line 10.Cruise speed line 11.battery（2 red wires is battery +，black is battery -） 12.high brake how to connect？ 1.connect the motor line (color to color，must connect） 2. connect the battery line(2 red wires is connect to battery + , black connect to battery-，these wires must need connect) 3. connect the controller throttle line（color to color connect） 4. connect the hall line(if motor without hall line, don’t need connect) 5.docking the two self-learning lines, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.) 6.other functions can be connected as needed. Features & details Application--It suitable for electric bicycles, scooter, etc. Premium Material--It made of aluminium alloy, this brushless controller is sturdy and durable. Sensitive Control--This item is a brushless motor controller, it can provide steady speed and sensitive control of braking and direction changes. High Performance--The wires and interfaces are durable, and ensure low malfunction of long time use. Easy to Use-- The interfaces have instruction labels on them for your easy installation. Product information Item Package Dimensions L x W x H 6.06 x 4.41 x 1.73 inches Package Weight 0.27 Kilograms Item Weight 16 ounces Brand Name yuandai Manufacturer yuandai Size 105*70*35mm
